Cisco 800 Series Routers

Best-in-class routing, voice and video, security, application performance, cloud connection, and wireless capabilities for limited spaces. Enable a variety of WAN connections, including xDSL, Ethernet, 3G/4G LTE, and fiber. The series offers a range of performance levels to meet your small and midsize business needs.

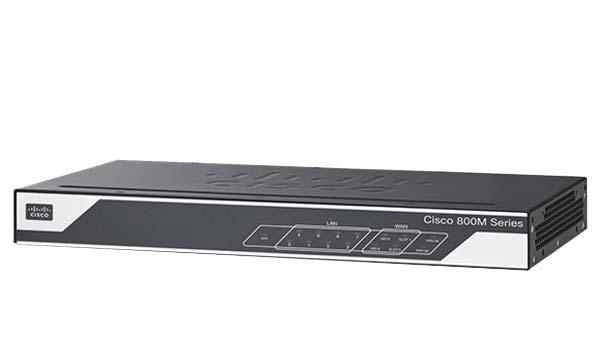

Cisco ISR 800M Series

• Integrated switching and routing

• WAN redundancy with 3G, 4G, and LTE

• Hardened and nonhardened form factors

LAN ports
4 and 8 GE LAN ports offered for device connectivity.

WAN port
2 GE WAN ports.

Open development platform
Native application hosting improves performance of real-time local data collection and analysis.

Lower capital and operation expenses
The single semi-modular platform includes an integrated Gigabit Ethernet switch, routing, multilayer security, the full Cisco IOS Software suite, multiple WAN interface choices, and Cisco IOx application hosting.

Security
Integrated enterprise-class security that includes, VPN, firewall, and content filtering offers protection from all threat vectors.

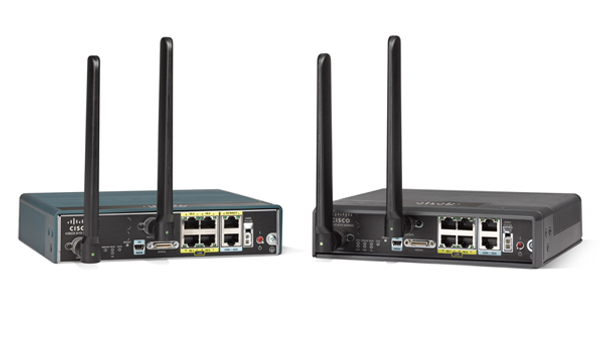

Cisco ISR 810 Series

• Hardened and nonhardened form factors

• Lightweight, compact, low power consumption

• Dual-SIM option for always-on connectivity

• For machine-to-machine use cases

LAN ports
Up to 4 Fast Ethernet LAN ports offered for device connectivity.

WAN port
1 WAN Ethernet port provided.

WLAN options
Autonomous Wi-Fi options available for Wi-Fi in the home or office, plus support for dual-radio 802.11a/b/g/n.

WWAN options
Support for 4G (LTE), 3.7G, 3.5G, and 3G connectivity options available for most regions and countries.

Security
Zone-Based Firewall blocks unwanted traffic. FLEX VPN and dynamic multipoint VPN (DMVPN) provide secure IPsec traffic encryption and corporate data privacy. Intrusion-prevention system protects branch network from signature-based malware.

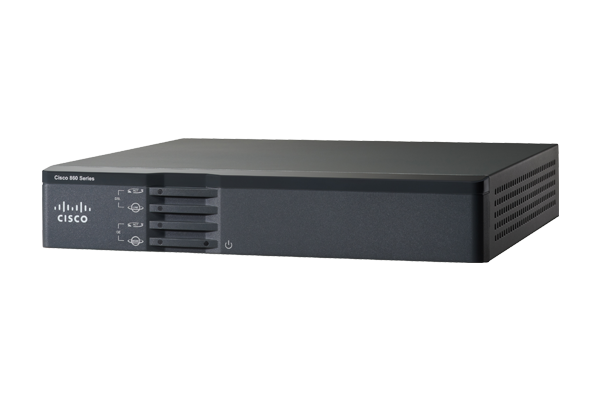

Cisco ISR 860 Series

• Connectivity for up to 10 users

• Desktop form factor and fanless design

• WAN connectivity with VADSL or Ethernet

• Wi-Fi for integrated WAN or Wi-Fi
  at home

LAN ports
4 or 5 Fast Ethernet and Gigabit Ethernet LAN ports connect local devices and PCs. A Power over Ethernet (PoE) option is available.

WAN options
Choose between Ethernet or ADSL/VDSL WAN connectivity (one option offered at a time).

Wi-Fi features
Autonomous Wi-Fi is available on some models.
Configure the WLAN (name and password) with customer GUI.

Security
Zone-Based Firewall (ZBFW) blocks unwanted traffic. FLEX VPN and dynamic multipoint VPN (DMVPN) provides secure IPsec traffic encryption and corporate data privacy. Cisco Cloud Web Security provides content filtering and URL whitelisting.

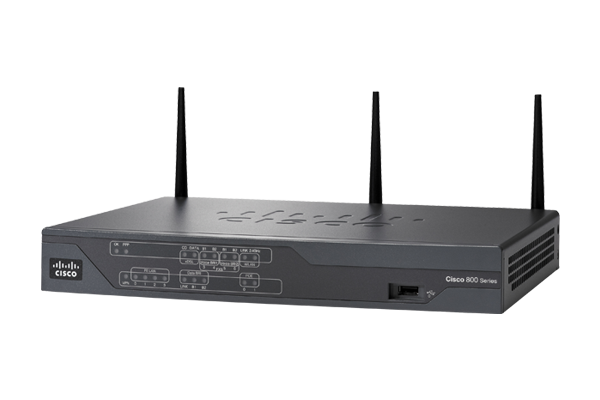

Cisco ISR 880 Series

• Connectivity for up to 20 users

• WAN redundancy with 3G and 4G options

• Excellent for PBX and IP telephony voice support

• Enhanced security and wireless options

LAN Features
Up to 4 Fast Ethernet LAN ports for local computers and other devices
Up to 2 Power over Ethernet (PoE)ports available

WAN Features
Fast Ethernet and xDSL for WAN connectivity
xDSL support: VDSL2, ADSL2, and G.SHDSL options
Backup WAN technologies such as ISDN BRI and V.92 on certain models

WLAN
Autonomous Wi-Fi available for Wi-Fi in the home or office
Support for dual-radio 802.11a/b/g/n

WWAN
Support for 4G (LTE), 3.7G, 3.5G, and 3G connectivity options
Available for most regions and countries

Voice
Optional voice ports available to connect analog phone, fax, or alarm
Survivable telephony in the branch

Security
Zone-Based Firewall (ZBFW) to block unwanted traffic
FLEX VPN, GET VPN, and dynamic multipoint VPM (DMVPN) for highly secure IPsec traffic encryption and corporate data privacy
Intrusion prevention system (IPS) to protect branch network from known signature-based malware
Content filtering and whitelisting through Cisco Cloud Web Security Application Services (available as an add-on license)
Cisco Wide Area Application Services Express for lightweight application acceleration for the branch

Cisco ISR 890 Series

• Ready for Cisco Intelligent WAN

• Switch and router in one device

• Run multiple applications simultaneously

• High-performance, high-application experience

• Support for 802.11a/b/g/n and 4G LTE

LAN features
Key capabilities include up to 24 Gigabit Ethernet LAN ports for local computers, IP phones, cameras, POS machines, and other IP devices, and up to 8 Power over Ethernet (PoE) ports.

WAN features
Capabilities include Fast Ethernet, Gigabit Ethernet with the Small Form-Factor Pluggable (SFP) option, and xDSL for WAN connectivity. Backup WAN technologies are available on certain models.

Mobility
The 890 Series has autonomous and unified Wi-Fi options for Wi-Fi in the home or office and support for dual-radio 802.11a/b/g/n.

3G, 4G LTE
These include support for 4G, 3.7G, 3.5G, and 3G connectivity options. 4G or 3G is available for most regions and countries.

Security
Zone-Based Firewall blocks unwanted traffic; FLEX VPN, GET VPN, and dynamic multipoint VPN provide secure IPsec traffic encryption and corporate data privacy; and intrusion prevention system protects from known signature-based malware.

Cisco Cloud Web Security Services
Services provided include content filtering and URL whitelisting; also application visibility and control (AVC) for a complete view of applications running in the network and their utilization rate.

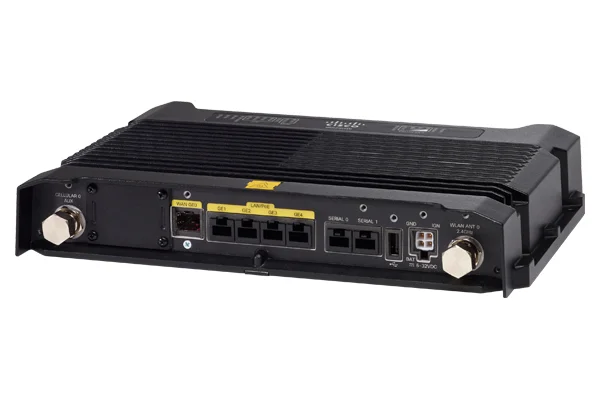

Cisco 800 Series
Industrial Isr

• Easily and rapidly deployable

• Highly available, highly secure communications

• Reliable operations

• Designed for machine-to-machine (M2M) communication and for mobile vehicle communication in harsh environmental conditions

• Designed to withstand hostile environments, tolerating a wide temperature range

Cellular connectivity
4G LTE, 3.7G, 3.5G, 3G, or 2G cellular WAN link
External, dual 4G antennas with main and receive diversity for maximum signal-strength connectivity
Dual subscriber identity module (SIM) capability

Wi-Fi
Supported only on the 829 model
Dual radio 802.11n, concurrent 2.4 GHz and 5.0 GHz with embedded 2x2 MIMO
Up to 300-Mbps data rate per radio
Autonomous and universal modes

WAN interfaces
Wireless WAN with multimode 4G LTE, 3.7G, 3.5G, 3G,
and 2G speeds
1 Small Form-Factor Pluggable (SFP) port (only on 829 model)

Dual active LTE WAN interfaces
Supported only on 829-2LTE model
Concurrent connections to two cellular networks for high reliability, enhanced data throughputs for mission-critical services

Serial interface
2 asynchronous serial interfaces (2 x RS-232 ports on 807 model; 1 x RS-232 DTE and 1 x RS-232/RS-485 DCE on
809 and 829)

LAN interfaces
2 x 10/100BASE-T Ethernet ports on 807 model
2 x 10/100/1000BASE-T Ethernet ports on 809 model
4 x 10/100/1000BASE-T Ethernet ports with shared 30W PoE/PoE+ (IEEE 802.3at) on 829 model

Security
Advanced security features that support:
Access control
Data confidentiality and data privacy
Threat detection and mitigation
Device and platform integrity

Fog computing
An open, extensible environment for application execution at the edge of the network for operational efficiency (only on 809 and 829 models)

Industrial operation
Extended temperature operating range:
-40ºF to 140ºF (-40ºC to 60ºC)
DNP3 serial to DNP3 IP and IEC T101 to T104 protocol translations for seamless integration with SCADA systems
Multi-industry worldwide certification

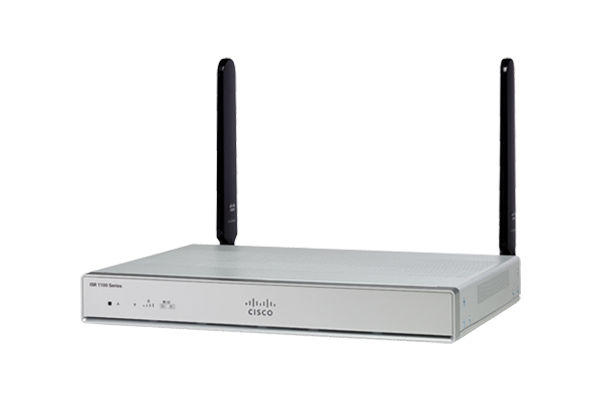

Cisco 1000 Series Integrated
Services Routers

The 1000 Series offers next-generation connectivity, software-defined WAN, and integrated security. Get routing, switching, and wireless in one device.

Cisco ISR 1109

• Extended temperature support

• Ethernet WAN

• 2-4 LAN ports

• 4 GB DRAM and 4 GB Flash

• Dual pluggable LTE option

Cisco ISR 1101

• Compact form factor

• Ethernet WAN

• 4 LAN ports

• 4 GB DRAM and 4 GB Flash

• Pluggable LTE option

Cisco ISR 111x

• Cisco SD-WAN option

• Dual Ethernet WAN

• 4-8 LAN ports

• 4 GB DRAM and 4 GB Flash

• PoE

Cisco ISR 1111X

• Cisco SD-WAN Security

• Dual Ethernet WAN

• 8 LAN ports

• 8 GB DRAM and 8 GB Flash

• PoE

Multicore processors
High-performance multicore processors support high-speed WAN connections. The data plane uses a flow processor that delivers Application-Specific Integrated Circuit (ASIC)-like performance that does not degrade as services are added.

Embedded IPsec VPN hardware acceleration
Increases scalability when combined with an optional Cisco IOS XE Software Security license, enables WAN link security and VPN services.

Integrated Gigabit Ethernet ports
Provides up to 10 built-in 10/100/1000 Ethernet ports for WAN or LAN (1100-8P: 2 WAN and 8 LAN ports, 1100-4P: 2 WAN and 4 LAN ports, 1101-4P: 1WAN and 4 LAN ports, and 1109-2P M2M : 1 WAN and 2 LAN ports).
All 1100-8P and 1100-4P platforms model have one 10/100/1000 Ethernet port that can support Small Form-Factor Pluggable (SFP)-based connectivity in addition to RJ-45 connections, enabling fiber or copper connectivity.
Depending on the platform, PoE/PoE+ can be enabled on Gigabit Ethernet interfaces (4 PoE or 2 PoE+ ports on the 1100-8P and 2 PoE or 1 PoE+ ports on the 1100-4P), to provide power to external devices such as video endpoints and 802.11ac access points (Not available on C1101 and C1109 M2M smaller form factor models).
Smaller form factor 1101-4P and 1109-4P with Cisco Pluggable technology option.
An additional dedicated Gigabit Ethernet port is provided for device management.

USB-based console access
A mini type B USB console port supports management connectivity when traditional serial ports are not available. Traditional console port are also available.

Optional integrated power supply for distribution of PoE
An optional upgrade to the internal power supply provides inline power (802.3af-compliant PoE or 802.3at-compliant PoE+) to integrated switch modules based on the external power supply selected.
PoE conversion capability provides an additional layer of fault tolerance (Not available on C1101 and C1109 M2M smaller form factor models).

Flash memory support
The 1100 Series ISRs ship with a fixed 4GB flash memory.
USB type A 2.0 ports provide capabilities for convenient storage.

DRAM
The 1100 Series comes with 4 GB fixed DRAM. C1111X-8P has 8 GB fixed DRAM for advanced SD-WAN security features.

Routing protocols
RIPv1, RIPv2, BGP, OSPF, EIGRP, PBR, PfR

Multicast
PIM-SM, mroute (static route), MLD

IPsec VPN
FlexVPN, DMVPN, GET VPN

4000 Series ISR models

The 4000 Series offers solutions for highly secure SD-WAN connectivity, application experience, unified communications, network automation, virtualization, and branch and direct Internet access security–all in one platform.

Virtualization ready
Host virtualized network functions and applications at any time and in any place. Flexible deployment options mean freedom of choice.

Network automation
Configure and monitor your network and enforce business policies through Cisco DNA Center and Cisco SD-WAN. Simplify network management and turn hours of work into seconds.

Branch threat defense
Protect your branch site across the LAN and WAN and in the cloud with security integrated into the router. You no longer need a separate security appliance.

New enterprise branch networking architectures
Understanding the market requirements, fundamental changes, and the need to adapt: presented by Enterprise Strategy Group.

Cisco ISR 4221

• GE/SFP integrated WAN ports

• 1.2-Gbps performance

• 75-Mbps encrypted throughput

• Full IOS XE SD-WAN support

• Cyberthreat protection through Trustworthy Systems framework

• Maximum switched Ethernet ports:
  2 x 8

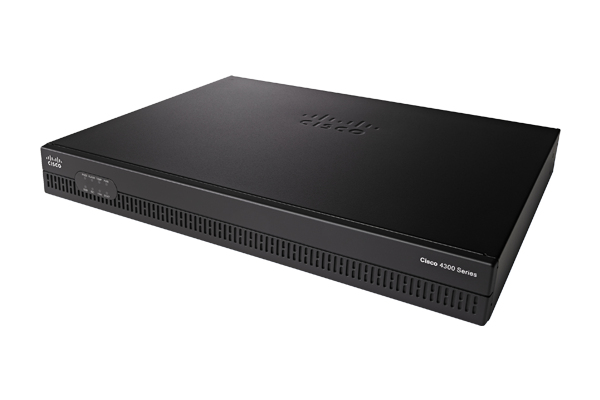

Cisco ISR 4321

• GE/SFP integrated WAN ports

• 2-Gbps+ performance

• 100-Mbps encrypted throughput

• Full IOS XE SD-WAN support

• Cyberthreat protection through Trustworthy Systems framework

• Maximum switched Ethernet ports: 16

Cisco ISR 4351

• PoE GE/SFP, GE/SFP integrated
  WAN ports

• 2-Gbps+ performance

• 500-Mbps encrypted throughput

• Full IOS XE SD-WAN support

• Cyberthreat protection through Trustworthy Systems framework

• Maximum switched Ethernet ports: 40

Cisco ISR 4431

• PoE GE/SFP, GE/SFP integrated
  WAN ports

• 4-Gbps + performance

• 900-Mbps encrypted throughput

• Cyberthreat protection through Trustworthy Systems framework

• Maximum switched Ethernet ports: 40

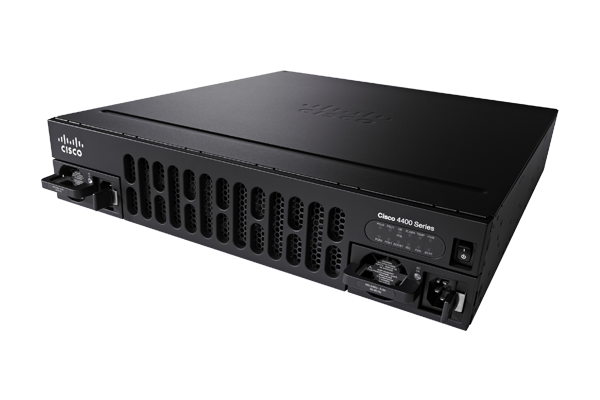

Cisco ISR 4451

• PoE GE/SFP, GE/SFP integrated
  WAN ports

• 4-Gbps+ performance

• 1.6-Gbps encrypted throughput

• Cyberthreat protection through Trustworthy Systems framework

• Maximum switched Ethernet ports: 72

Cisco ISR 4461

• 10 GE SFP+, PoE GE/SFP, GE/SFP integrated WAN ports

• 10-Gbps+ performance

• 7-Gbps encrypted throughput

• Cyberthreat protection through Trustworthy Systems framework

• Maximum switched Ethernet ports: 120

Zone-based firewall and NAT services
VRF-Aware Firewall and Network Address Translation (NAT)

IPsec VPN services
FlexVPN, Easy VPN remote server, Enhanced Easy VPN, Dynamic Multipoint VPN (DMVPN) Group Encrypted Transport VPN (GET VPN), V3PN, MPLS VPN

Network foundation protection
ACL, FPM, control plan protection, control plane policing (CoPP), QoS, role-based CLI access, source-based RTBH, uRPF, SSHv2

IPv4 routing protocols
RIP v1/v2, EIGRP, OSPF, BGP, PBR, PfR

Multicast routing protocols
PIM-SM, mroute (static route), and MLD

Wireless LAN controller module
Available on UCS E-Series

Wireless WAN
3G/4G LTE cellular: Yes
Cat 6 LTE Advanced: Yes
GPS support: Yes
Indoor antenna: Yes (Various antenna using 2 x TNC connectors supporting MIMO)

Cisco Application Centric Infrastructure
Application Policy Infrastructure Controller (APIC) with Enterprise Module

Cisco Integrated Services Virtual Router

Now you can get the network, computing, and WAN services that you find in Cisco hardware routers as software. The Integrated Services Virtual Router (ISRv) has earned Miercom Performance Verified certification for its ability to extend network security and services into the cloud while providing outstanding throughput performance.

Cisco routing as software
Get the same routing services you trust, now with more deployment options including Cisco Enterprise Network Compute System.​

Comprehensive set of services
The ISRv is built on Cisco IOS XE Software. It offers routing, security, and application services, among others.

Cisco ONE WAN Essentials
Basic networking: BGP, OSPF, EIGRP, Routing Information Protocol (RIP), Intermediate System-to-Intermediate System (IS-IS), IPv6, GRE, VRF-Lite, NTP, QoS, and CLNS
Multicast: Internet Group Management Protocol (IGMP) and Protocol Independent Multicast (PIM)
High availability: HSRP, VRRP, and GLBP
Addressing: 802.1Q VLAN, EVC, NAT, DHCP, and DNS
Basic security: ACL, AAA, RADIUS, and TACACS+
Management: Cisco IOS XE CLI, SSH, Flexible NetFlow, SNMP, EEM, and NETCONF

Support for virtualization
Centrally orchestrate and manage the router with the Cisco Enterprise Network Functions Virtualization (NFV) solution.

Cisco ONE WAN Foundation-Essentials Plus
Advanced networking: Layer 2 Tunneling Protocol Version 3 (L2TPv3), BFD, MPLS, VRF, and VXLAN
Application experience: WCCPv2, AppNAV, Network-Based Application Recognition Version 2 (NBAR2), AVC, and IP SLA
Hybrid cloud connectivity: LISP, OTV, VPLS, and EoMPLS
Subscriber management: Point-to-Point Protocol termination and aggregation (PTA), Layer 2 Tunneling Protocol Network Server (LNS), and Intelligent Services Gateway (ISG)
Advanced security: ZBFW, IPsec VPN, Easy VPN, DMVPN, and FlexVPN
Box-to-box high-availability for ZBFW
and NAT
