Fortinet FortiDDos
Distributed Denial of Service (DDoS) attacks are ever-evolving and use a variety of technologies. To successfully combat these attacks, you need a dynamic, multi-layered security solution. FortiDDoS protects from both known and zero day attacks with very low latency. It’s easy to deploy and manage, and includes comprehensive reporting and analysis tools.
Only Fortinet uses a 100% SPU approach to its DDoS products without the performance compromises of a CPU or CPU/ASIC hybrid system. The SPU-TP2 transaction processors inspect 100% of both inbound and outbound Layer 3, 4 and 7 traffic, resulting in the fastest detection and mitigation, and the lowest latency in the industry.
Features
Ability to monitor hundreds of thousands of parameters
simultaneously
Defense against every DDoS attack: bulk volumetric, layer 7 application, and SSL/HTTPS
Attack protection for DNS services via specialized tools
100% security processor (SPU)-based layer 3, 4, and 7 DDoS protection application-aware traffic management
Behavior-based DDoS protection to eliminate need for signature files
Minimal false-positive detections through continuous threat evaluation
Flexible Defense Mechanisms
FortiDDoS protects against every DDoS attack

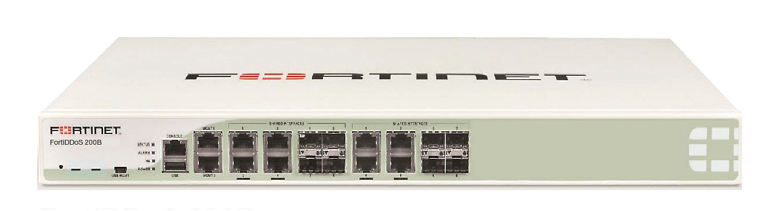

Fortinet FortiDDoS 200MB
FDD-200B
4 pairs x Shared Media DDoS Defense Ports (including 4 pairs x GE RJ45 with bypass protection, 4 pairs x GE SFP slots) 2x GE RJ45 Management Ports
AC Power Supply with Redundant Power Option
Includes 480 GB SSD storage
3 Gbps throughput. Supports Advanced DNS Mitigation
Hardware Specifications
LAN Interfaces Copper GE with built-in bypass: 4
WAN Interfaces Copper GE with built-in bypass: 4
LAN Interfaces SFP GE: 4
WAN interfaces SFP GE: 4
LAN Interfaces SFP+ 10 GE / SFP GE: -
WAN Interfaces SFP+ 10 GE / SFP GE: -
LAN Interfaces LC (850 nm, 10 GE) with built-in bypass: -
WAN Interfaces LC (850 nm, 10 GE) with built-in bypass: -
Storage: 1x 480 GB SSD
Form Factor: 1U Appliance
Power Supply: Single (Optional External Dual Hot-Swappable)
System Performance
Throughput (Enterprise Mix — Gbps): 3
Packet Throughput (Mpps): 4
Latency (µs) Maximum/Typical: <50/<10
DDoS Attack Mitigation Response Time(s): <2
Advanced DNS Mitigation
(Firmware v4.2.0): Yes
DNS Queries per second (M): 1
Open Hybrid Cloud Mitigation Support: Yes

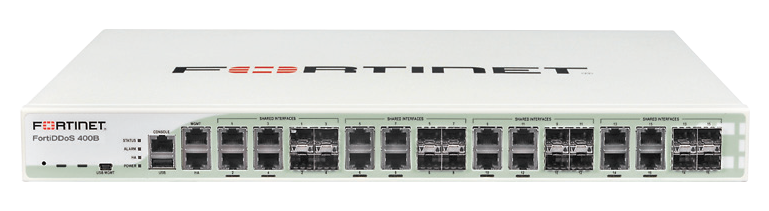

Fortinet FortiDDoS 400B
FDD-400B
8 pairs x Shared Media DDoS Defense Ports (including 8 pairs x GE RJ45 with bypass protection, 8 pairs x GE SFP slots) 2x GE RJ45 Management Ports
AC Power Supply with Redundant Power Option
Includes 480 GB SSD storage
6 Gbps throughput
Supports Advanced DNS Mitigation
Hardware Specifications
LAN Interfaces Copper GE with built-in bypass: 8
WAN Interfaces Copper GE with built-in bypass: 8
LAN Interfaces SFP GE: 8
WAN interfaces SFP GE: 8
LAN Interfaces SFP+ 10 GE / SFP GE: -
WAN Interfaces SFP+ 10 GE / SFP GE: -
LAN Interfaces LC (850 nm, 10 GE) with built-in bypass: -
WAN Interfaces LC (850 nm, 10 GE) with built-in bypass: -
Storage: 1x 480 GB SSD
Form Factor: 1U Appliance
Power Supply: Single (Optional External Dual Hot-Swappable)
System Performance
Throughput (Enterprise Mix — Gbps): 6
Packet Throughput (Mpps): 8
Latency (µs) Maximum/Typical: <50/<10
DDoS Attack Mitigation Response Time(s): <2
Advanced DNS Mitigation
(Firmware v4.2.0): Yes
DNS Queries per second (M): 2
Open Hybrid Cloud Mitigation Support: Yes

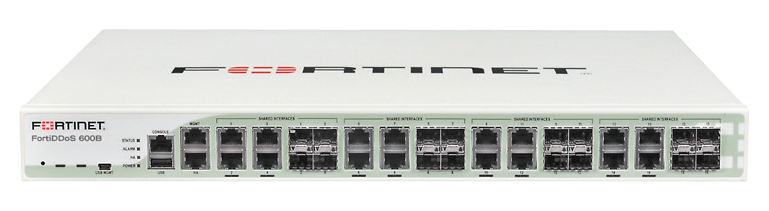

Fortinet FortiDDoS 600MB
FDD-600B
8 pairs x Shared Media DDoS Defense Ports (including 8 pairs x GE RJ45 with bypass protection, 8 pairs x GE SFP slots) 2x GE RJ45 Management Ports
AC Power Supply with Redundant Power Option
Includes 480 GB SSD storage
12 Gbps throughput
Does NOT support Advanced DNS Mitigation.
Hardware Specifications
LAN Interfaces Copper GE with built-in bypass: 8
WAN Interfaces Copper GE with built-in bypass: 8
LAN Interfaces SFP GE: 8
WAN interfaces SFP GE: 8
LAN Interfaces SFP+ 10 GE / SFP GE: -
WAN Interfaces SFP+ 10 GE / SFP GE: -
LAN Interfaces LC (850 nm, 10 GE) with built-in bypass: -
WAN Interfaces LC (850 nm, 10 GE) with built-in bypass: -
Storage: 1x 480 GB SSD
Form Factor: 1U Appliance
Power Supply: Single (Optional External Dual Hot-Swappable)
System Performance
Throughput (Enterprise Mix — Gbps): 12
Packet Throughput (Mpps): 16
Latency (µs) Maximum/Typical: <50/<10
DDoS Attack Mitigation Response Time(s): <2
Advanced DNS Mitigation
(Firmware v4.2.0): No
DNS Queries per second (M): NA
Open Hybrid Cloud Mitigation Support: Yes
Fortinet FortiDDoS 800B
FDD-800B
8 pairs x Shared Media DDoS Defense Ports (including 8 pairs x GE RJ45 with bypass protection, 8 pairs x GE SFP slots) 2x GE RJ45 Management Ports
AC Power Supply with Redundant Power Option
Includes 480 GB SSD storage
12 Gbps throughput
Supports Advanced DNS Mitigation
Hardware Specifications
LAN Interfaces Copper GE with built-in bypass: 8
WAN Interfaces Copper GE with built-in bypass: 8
LAN Interfaces SFP GE: 8
WAN interfaces SFP GE: 8
LAN Interfaces SFP+ 10 GE / SFP GE: -
WAN Interfaces SFP+ 10 GE / SFP GE: -
LAN Interfaces LC (850 nm, 10 GE) with built-in bypass: -
WAN Interfaces LC (850 nm, 10 GE) with built-in bypass: -
Storage: 1x 480 GB SSD
Form Factor: 1U Appliance
Power Supply: Single (Optional External Dual Hot-Swappable)
System Performance
Throughput (Enterprise Mix — Gbps): 12
Packet Throughput (Mpps): 16
Latency (µs) Maximum/Typical: <50/<10
DDoS Attack Mitigation Response Time(s): <2
Advanced DNS Mitigation
(Firmware v4.2.0): Yes
DNS Queries per second (M): 4
Open Hybrid Cloud Mitigation Support: Yes
Fortinet FortiDDoss 900B
FDD-900B
8 pairs x 10 GE SFP+ DDoS Defense Ports (can also support GE SFPs) 2x GE RJ45 Management Ports
Dual AC Power Supplies
Includes 480 GB SSD storage and 2x 10 GE SR SFP+
18 Gbps throughput
Does NOT support Advanced DNS Mitigation
Hardware Specifications
LAN Interfaces Copper GE with built-in bypass: -
WAN Interfaces Copper GE with built-in bypass: -
LAN Interfaces SFP GE: -
WAN interfaces SFP GE: -
LAN Interfaces SFP+ 10 GE / SFP GE: 8
WAN Interfaces SFP+ 10 GE / SFP GE: 8
LAN Interfaces LC (850 nm, 10 GE) with built-in bypass: -
WAN Interfaces LC (850 nm, 10 GE) with built-in bypass: -
Storage: 1x 480 GB SSD
Form Factor: 2U Appliance
Power Supply: Dual Hot-Swappable
System Performance
Throughput (Enterprise Mix — Gbps): 18
Packet Throughput (Mpps): 24
Latency (µs) Maximum/Typical: <50/<10
DDoS Attack Mitigation Response Time(s): <2
Advanced DNS Mitigation
(Firmware v4.2.0): No
DNS Queries per second (M): NA
Open Hybrid Cloud Mitigation Support: Yes

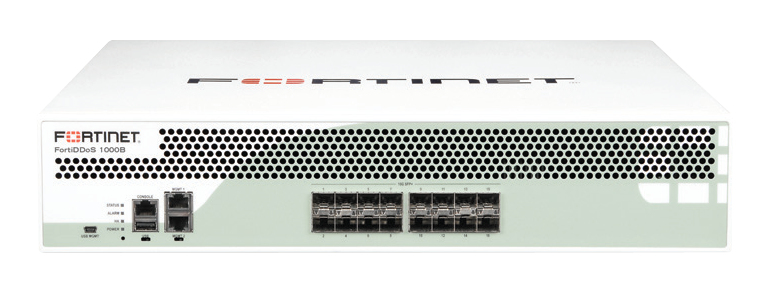

Fortinet FortiDDoS 1000B/1000-DC
FDD-1000B
8 pairs x 10 GE SFP+ DDoS Defense Ports (can also support GE SFPs), 2x GE RJ45 Management Ports
Dual AC Power Supplies
Includes 480 GB SSD storage and 2x 10 GE SR SFP+
18 Gbps throughput
Supports Advanced DNS Mitigation
Hardware Specifications
LAN Interfaces Copper GE with built-in bypass: -
WAN Interfaces Copper GE with built-in bypass: -
LAN Interfaces SFP GE: -
WAN interfaces SFP GE: -
LAN Interfaces SFP+ 10 GE / SFP GE: 8
WAN Interfaces SFP+ 10 GE / SFP GE: 8
LAN Interfaces LC (850 nm, 10 GE) with built-in bypass: -
WAN Interfaces LC (850 nm, 10 GE) with built-in bypass: -
Storage: 1x 480 GB SSD
Form Factor: 2U Appliance
Power Supply: Dual Hot-Swappable
System Performance
Throughput (Enterprise Mix — Gbps): 18
Packet Throughput (Mpps): 24
Latency (µs) Maximum/Typical: <50/<10
DDoS Attack Mitigation Response Time(s): <2
Advanced DNS Mitigation
(Firmware v4.2.0): Yes
DNS Queries per second (M): 6
Open Hybrid Cloud Mitigation Support: Yes

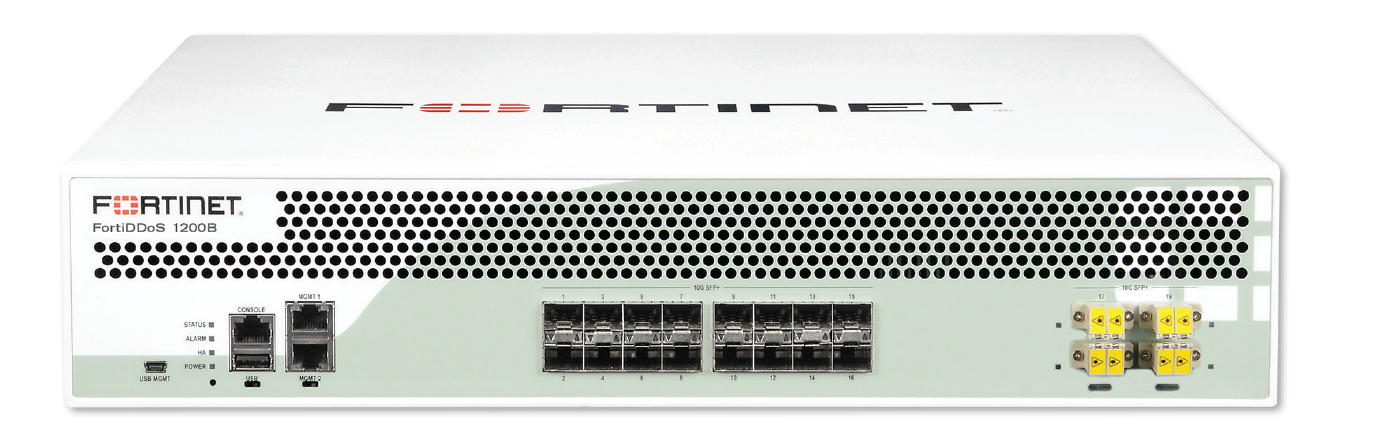

Fortinet FortiDDoS 1200B
FDD-1200B
8 pairs x 10GE SFP+ DDoS Defense Ports (can also support GE SFPs), 2 pairs x 10 GE LC Ports with optical bypass, 2x GE RJ45 Management Ports
Dual AC Power Supplies
Includes 480 GB SSD storage and 2x 10 GE SR SFP+
36 Gbps throughput
Supports Advanced DNS Mitigation
Hardware Specifications
LAN Interfaces Copper GE with built-in bypass: -
WAN Interfaces Copper GE with built-in bypass: -
LAN Interfaces SFP GE: -
WAN interfaces SFP GE: -
LAN Interfaces SFP+ 10 GE / SFP GE: 8
WAN Interfaces SFP+ 10 GE / SFP GE: 8
LAN Interfaces LC (850 nm, 10 GE) with built-in bypass: 2
WAN Interfaces LC (850 nm, 10 GE) with built-in bypass: 2
Storage: 1x 480 GB SSD
Form Factor: 2U Appliance
Power Supply: Dual Hot-Swappable
System Performance
Throughput (Enterprise Mix — Gbps): 36
Packet Throughput (Mpps): 48
Latency (µs) Maximum/Typical: <50/<10
DDoS Attack Mitigation Response Time(s): <2
Advanced DNS Mitigation
(Firmware v4.2.0): Yes
DNS Queries per second (M): 12
Open Hybrid Cloud Mitigation Support: Yes
A better approach to DDoS
Contact JSCM Group for competitive pricing
