Sophos XG Firewall
Utilizing advanced technology and "out of the box" thinking, Sophos XG Firewalls expose hidden risks, stop zero-day threats and manage exploits. And when combined with the Sophos Endpoint Protection system, Sophos XG Firewalls provide you with the ability to lock out, clean, and reinstate endpoints all remotely and in an instant.
Features
Sophos takes a different approach to stopping threats against your network. Instead of relying solely on lists of malware that it checks against your traffic, Sophos utilizes Deep Learning to determine a files behavior. Then, the firewall compares this behavior to other forms of malware. This has the huge added benefit of incredible protection from zero-day events, ransomeware, cryptojacking, malware, and more!
The robust and efficient Control Center gives you incredible visibility of your firewall and network. You'll get real-time status updates on system performance, services and connections. The Reports section gives you detailed reports of data that may be of interest. Additionally, On-Box Reporting gives you in-depth analysis of your firewall without the need for a separate server or device.
Endpoint Integration
The services of the XG Firewall are expanded on even more once you combine it with Sophos Central Endpoint Protection. Using Synchronized Security combined with Security Heartbeat, XG Firewalls can see all endpoints on the system to better monitor network health, identify infected systems, and isolate them so they cannot damage the network.
To learn more about the Sophos Endpoint Protection, click here!
XG DESKTOP MODELS
Sophos Desktop firewall appliances support all the security features of our larger appliances but in a compact form factor and at a fraction of the cost. Whether you’re looking for an all-in-one security solution for your branch office, or need next-gen firewall security for your growing business, our range of models can offer you many features not available anywhere else.
Sophos XG 85/85w Rev.3 Firewall
PERFORMANCE
FIREWALL: 3 GBPS
NGFW: 310 MBPS
VPN: 225 MBPS
IPS: 580 MBPS
AV (PROXY): 360 MBPS
CONNECTIVITY
ETHERNET PORTS
4 x GE copper
WI-FI OPTION
802.11ac, 2x2 MIMO
2 external antennas,
single radio 2.4 or 5 GHz
MODULARITY
EXPANSION SLOTS: n/a
OPTIONAL MODULES: n/a
REDUNDANCY
SWAPPABLE COMPONENTS: n/a
Sophos XG 105 / 105w Rev.3 Firewall
PERFORMANCE
FIREWALL: 3.5 GBPS
NGFW: 480 MBPS
VPN: 360 MBPS
IPS: 970 MBPS
AV (PROXY): 450 MBPS
CONNECTIVITY
ETHERNET PORTS
4 x GE copper
1 x SFP* (shared)
WI-FI OPTION
802.11ac, 2x2 MIMO
2 external antennas
single radio 2.4 or 5 GHz
MODULARITY
EXPANSION SLOTS: n/a
OPTIONAL MODULES
SFP DSL Modem
SFP transceivers
REDUNDANCY
SWAPPABLE COMPONENTS
Optional 2nd power supply
Sophos XG 115 / 115w Rev.3 Firewall
PERFORMANCE
FIREWALL: 4 GBPS
NGFW: 1000 MBPS
VPN: 490 MBPS
IPS: 1220 MBPS
AV (PROXY): 600 MBPS
CONNECTIVITY
ETHERNET PORTS
4 x GE copper, 1 x SFP* (shared)
WI-FI OPTION
802.11ac, 2x2 MIMO,
2 external antennas,
single radio 2.4 or 5 GHz
MODULARITY
EXPANSION SLOTS: n/a
OPTIONAL MODULES: SFP DSL Modem; SFP transceivers
REDUNDANCY
SWAPPABLE COMPONENTS: Optional 2nd power supply
Sophos XG 125 / 125w Rev.3 Firewall
PERFORMANCE
FIREWALL: 6.5 GBPS
NGFW: 1100 MBPS
VPN: 700 MBPS
IPS: 1530 MBPS
AV (PROXY): 700 MBPS
CONNECTIVITY
ETHERNET PORTS
8 x GE copper, 1 x SFP*
WI-FI OPTION
802.11ac, 3x3 MIMO
3 external antennas
single radio 2.4 or 5 GHz
MODULARITY
EXPANSION SLOTS: 1
OPTIONAL MODULES: SFP DSL Modem
3G/4G Modul, SFP transceivers
REDUNDANCY
SWAPPABLE COMPONENTS
Optional 2nd power supply
Sophos XG 135 / 135w Rev.3 Firewall
PERFORMANCE
FIREWALL: 8 GBPS
NGFW: 1200 MBPS
VPN: 1180 MBPS
IPS: 2480 MBPS
AV (PROXY): 1580 MBPS
CONNECTIVITY
ETHERNET PORTS
8 x GE copper, 1 x SFP*
WI-FI OPTION
802.11ac, 3x3 MIMO
3 external antennas, single radio 2.4 or 5 GHz
(Add-on Module also available for 135w only)
MODULARITY
EXPANSION SLOTS: 1
OPTIONAL MODULES: SFP DSL Modem
3G/4G Module
2nd Wi-Fi Module (135w only)
SFP transceivers
REDUNDANCY
SWAPPABLE COMPONENTS: Optional 2nd power supply
XG 1U MODELS
Sophos XG Series 1U mid-range firewall appliances are the ideal solution for many medium-sized and distributed organizations. With their flexible connectivity options, they are designed to adapt as your environment changes. All models come with a range of copper and fibre ports on-board and offer a broad range of accessories to provide power redundancy and options to connect external devices.
Sophos XG 210 Rev.3 Firewall
PERFORMANCE
FIREWALL: 16 GBPS
NGFW: 2.2 GBPS
VPN: 1.45 GBPS
IPS: 2.7 GBPS
AV (PROXY): 2.3 GBPS
CONNECTIVITY
ETHERNET INTERFACES
6x GbE copper
2x GbE SFP
REDUNDANCY
2ND POWER SUPPLY: Optional External
MODULARITY
FLEXI PORT SLOTS: 1
FLEXI PORT MODULES (OPTIONAL)*
8 port GE copper
8 port GE SFP
2 port 10 GE SFP+
4 port 10 GE SFP+
2 port 40 GE QSFP+
4 port GE copper
LAN bypass
4 port GE PoE
8 port GE PoE
Sophos XG 230 Rev.2 Firewall
PERFORMANCE
FIREWALL: 20 GBPS
NGFW: 3 GBPS
VPN: 1.7 GBPS
IPS: 4.2 GBPS
AV (PROXY): 2.8 GBPS
CONNECTIVITY
ETHERNET INTERFACES
6x GbE copper
2x GbE SFP
REDUNDANCY
2ND POWER SUPPLY: Optional External
MODULARITY
FLEXI PORT SLOTS: 1
FLEXI PORT MODULES (OPTIONAL)*
8 port GE copper
8 port GE SFP
2 port 10 GE SFP+
4 port 10 GE SFP+
2 port 40 GE QSFP+
4 port GE copper
LAN bypass
4 port GE PoE
8 port GE PoE
Sophos XG 310 Rev.2 Firewall
PERFORMANCE
FIREWALL: 28 GBPS
NGFW: 4 GBPS
VPN: 2.75 GBPS
IPS: 5.5 GBPS
AV (PROXY): 3.3 GBPS
CONNECTIVITY
ETHERNET INTERFACES
8x GbE copper
2x GbE SFP
2x 10 GbE SFP+
REDUNDANCY
2ND POWER SUPPLY
Optional External
MODULARITY
FLEXI PORT SLOTS: 1
FLEXI PORT MODULES (OPTIONAL)*
8 port GE copper
8 port GE SFP
2 port 10 GE SFP+
4 port 10 GE SFP+
2 port 40 GE QSFP+
4 port GE copper
LAN bypass
4 port GE PoE
8 port GE PoE

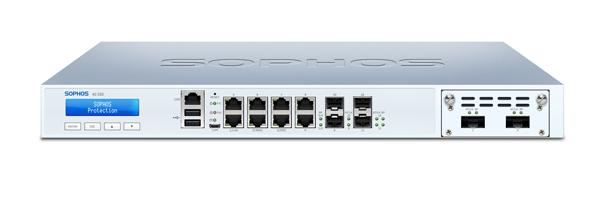

Sophos XG 330 Rev.2 Firewall
PERFORMANCE
FIREWALL: 33 GBPS
NGFW: 5.5 GBPS
VPN: 3.2 GBPS
IPS: 8.5 GBPS
AV (PROXY): 6 GBPS
CONNECTIVITY
ETHERNET INTERFACES
8x GbE copper
2x GbE SFP
2x 10 GbE SFP+
REDUNDANCY
2ND POWER SUPPLY
Optional External
MODULARITY
FLEXI PORT SLOTS: 1
FLEXI PORT MODULES (OPTIONAL)*
8 port GE copper
8 port GE SFP
2 port 10 GE SFP+
4 port 10 GE SFP+
2 port 40 GE QSFP+
4 port GE copper
LAN bypass
4 port GE PoE
8 port GE PoE
Sophos XG 430 Rev.2 Firewall
PERFORMANCE
FIREWALL: 41 GBPS
NGFW: 6 GBPS
VPN: 4.8 GBPS
IPS: 9 GBPS
AV (PROXY): 6.5 GBPS
CONNECTIVITY
ETHERNET INTERFACES
8x GbE copper
2x 10 GbE SFP+
REDUNDANCY
2ND POWER SUPPLY
Optional External
MODULARITY
FLEXI PORT SLOTS: 2
FLEXI PORT MODULES (OPTIONAL)*
8 port GE copper
8 port GE SFP
2 port 10 GE SFP+
4 port 10 GE SFP+
2 port 40 GE QSFP+
4 port GE copper
LAN bypass
4 port GE PoE
8 port GE PoE
Sophos XG 450 Rev.2 Firewall
PERFORMANCE
FIREWALL: 50 GBPS
NGFW: 7.5 GBPS
VPN: 5.5 GBPS
IPS: 10 GBPS
AV (PROXY): 7 GBPS
CONNECTIVITY
ETHERNET INTERFACES
8x GbE copper
2x 10 GbE SFP+
REDUNDANCY
2ND POWER SUPPLY
Optional internal
MODULARITY
FLEXI PORT SLOTS: 2
FLEXI PORT MODULES (OPTIONAL)*
8 port GE copper
8 port GE SFP
2 port 10 GE SFP+
4 port 10 GE SFP+
2 port 40 GE QSFP+
4 port GE copper
LAN bypass
4 port GE PoE
8 port GE PoE
XG 2U MODELS
Sophos 2U high-end firewall appliances come equipped to provide protection for larger distributed organizations and data center environments. They offer the latest high-performance technology and the ultimate in flexibility to meet the most demanding networking requirements.
Sophos XG 550 Rev.2 Firewall
PERFORMANCE
FIREWALL: 65 GBPS
NGFW: 9 GBPS
VPN: 8.4 GBPS
IPS: 17 GBPS
AV: 10 GBPS
CONNECTIVITY
ETHERNET PORTS
All models supplied with
one 8x 1 GE copper module
REDUNDANCY
SWAPPABLE COMPONENTS
Dual SSDs and Power Supplies, swappable fans
MODULARITY
FLEXI PORT SLOTS: 4
FLEXI PORT MODULES (OPTIONAL)*
8 port GE copper
8 port GE SFP
2 port 10 GE SFP+
4 port 10 GE SFP+
2 port 40 GE QSFP+
4 port SFP plus 4
port GE copper
LAN bypass
Sophos XG 650 Rev.2 Firewall
PERFORMANCE
FIREWALL: 85 GBPS
NGFW: 10 GBPS
VPN: 9 GBPS
IPS: 20 GBPS
AV: 13 GBPS
CONNECTIVITY
ETHERNET PORTS
All models supplied with
one 8x 1 GE copper module
REDUNDANCY
SWAPPABLE COMPONENTS
Dual SSDs and Power Supplies,
swappable fans
MODULARITY
FLEXI PORT SLOTS: 6
FLEXI PORT MODULES (OPTIONAL)*
8 port GE copper
8 port GE SFP
2 port 10 GE SFP+
4 port 10 GE SFP+
2 port 40 GE QSFP+
4 port SFP plus 4
port GE copper
LAN bypass
Sophos XG 750 Rev.2 Firewall
PERFORMANCE
FIREWALL: 100 GBPS
NGFW: 11.8 GBPS
VPN: 11 GBPS
IPS: 22 GBPS
AV: 17 GBPS
CONNECTIVITY
ETHERNET PORTS
All models supplied with
one 8x 1 GE copper module
REDUNDANCY
SWAPPABLE COMPONENTS
Dual SSDs and Power Supplies,
swappable fans
MODULARITY
FLEXI PORT SLOTS: 8
FLEXI PORT MODULES (OPTIONAL)*
8 port GE copper
8 port GE SFP
2 port 10 GE SFP+
4 port 10 GE SFP+
2 port 40 GE QSFP+
4 port SFP plus 4
port GE copper
LAN bypass
* Transceivers sold separately
