Cisco Wireless Access Points
Charlotte NC certified Cisco reseller

Cisco Wireless access points

Cisco delivers key wireless innovation through custom-built, state-of-the-art access points that go beyond [MC-(-EUIa1] the 802.11ac wireless standard to provide radio-frequency excellence for high-density environments. Transmitting data at speeds beyond 1 Gbps across a wireless network, they provide the performance and functionality to support Wi-Fi mobility for your customers and employees into the future.

Best of all, JSCM Group will offer you the best prices on Cisco Wireless Access Points. We offer the highest level of customer service and a dedicated account manager for you to work with on current projects and renewals.



Features


Cisco DNA Assurance
Stop manual troubleshooting and reduce time spent on issues

Go beyond 802.11ac
Address high-density needs with Cisco innovations

Industry-leading wireless
Cisco is a leader in Gartner’s Magic Quadrant

Optimize Automatically
Improve mobile experience in high-density areas

Rapid Network Set Up
Deploy an enterprise-class wireless LAN cost-effectively



Cisco Wifi small banner ad.jpg

Wireless and Mobility

JSCM Group offers competitive pricing on Cisco Wireless

blue bar.jpg


Cisco Aironet 1815 Series Access Points

With the 1815 Series, your smartphones, tablets, and high-performance laptops that adhere to the 802.11ac Wave 2 standard

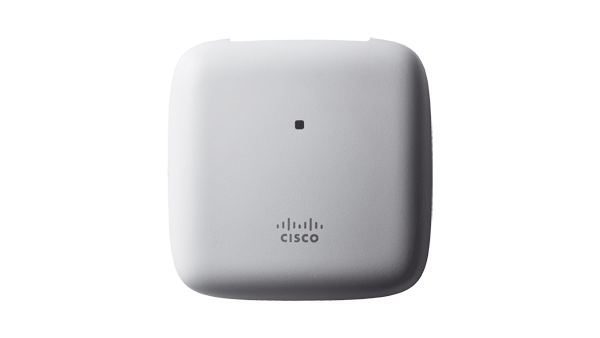

Cisco Aironet 1815i

Cisco Aironet 1815i wireless access point

  • 2x2 MU-MIMO, 2 spatial streams

  • Flexible deployment through Mobility Express

  • Integrated Bluetooth low energy 4.1 radio

  • Designed with flexible mounting options

long dotted gray line.jpg

Authentication and security
Advanced Encryption Standard (AES) for Wi-Fi
Protected Access 2 (WPA2)
802.1X, RADIUS authentication, authorization,
and accounting (AAA)
802.11r, 802.11i

Software
Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later
Cisco Mobility Express

Maximum clients
Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point

802.11ac
2x2 single-user/multiuser MIMO with two
spatial streams
Maximal ratio combining (MRC)
20-, 40- and 80-MHz channels
PHY data rates up to 866.7 Mbps
(80 MHz on 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic shift diversity (CSD) support

Ethernet ports
Authentication with 802.1X or MAC filtered
Dynamic VLAN or per port
Traffic locally switched or tunneled back to wireless LAN controller

Bluetooth (future availability)
Integrated Bluetooth 4.1 (including BLE) radio
Maximum transmit power: 4 dBm
Antenna gain: 2 dBi

Interfaces
1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
Management console port (RJ-45)

System
1 GB DRAM, 256 MB flash, 710 MHz quad core

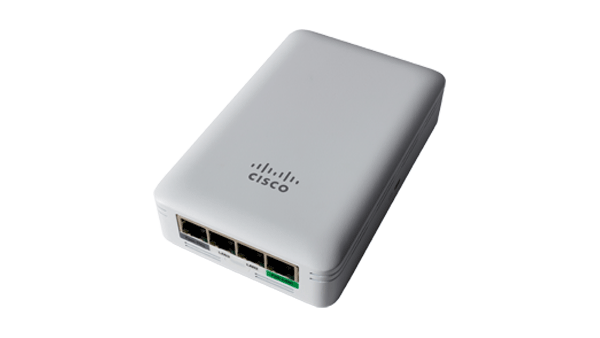

Cisco Aironet 1815w

Cisco Aironet 1815w Access Point

  • 2x2 MU-MIMO, 2 spatial streams

  • Sleek style ideal for multi-dwelling units

  • Flexible deployment through Mobility Express

  • Integrated Bluetooth low energy 4.1 radio

long dotted gray line.jpg

Authentication and security
Advanced Encryption Standard (AES) for Wi-Fi
Protected Access 2 (WPA2)
802.1X, RADIUS authentication, authorization
and accounting (AAA)
802.11r, 802.11i

Software
Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.4 or later
Cisco Mobility Express

Maximum clients
Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point

802.11ac
2x2 single-user/multiuser MIMO with two spatial streams
Maximal ratio combining (MRC)
20-, 40-, and 80-MHz channels
PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic shift diversity (CSD) support

Ethernet ports
Authentication with 802.1X or MAC filtered
Dynamic VLAN or per port
Traffic locally switched or tunneled back to wireless LAN controller

Bluetooth (future Availability)
Integrated Bluetooth 4.1 (including BLE) radio
Maximum transmit power: 4 dBm
Antenna gain: 2 dBi

Interfaces
1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
Management console port (4-pin connector)
Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port:
PoE out provides 802.3af (class 0) when access point is powered by 802.3at, or no output when powered by 802.3af
One passive pass-through port RJ-45 (back to bottom)

System
1 GB DRAM, 256 MB flash, 710 MHz quad-core

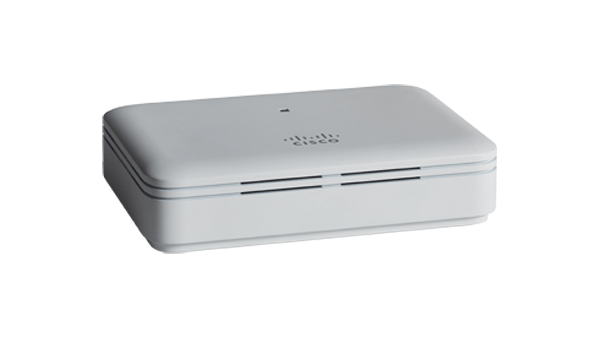

Cisco Aironet 1815t

Cisco Aironet 1815t

  • 2x2 MU-MIMO, 2 spatial streams

  • Extends real-time services to remote locations

  • Secure DTLS link between AP and controller

  • Three GE ports for connecting to network

Authentication and security
Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)
802.1X, RADIUS authentication, authorization, and accounting (AAA)
802.11r, 802.11i

Software
Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later

Maximum clients
Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point

Interfaces
1 x 10/100/1000BASE-T autosensing (RJ-45)
Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port:
PoE out provides 802.3af when access point is powered by
Cisco local power supply (AIR-PWR-D=)

802.11ac
2x2 single-user/multiuser MIMO with two spatial streams
Maximal ratio combining (MRC)
20-, 40-, and 80-MHz channels
PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic shift diversity (CSD) support

Ethernet ports
Authentication with 802.1X or MAC filtered
Dynamic VLAN or per port
Traffic locally switched or tunneled back to wireless
LAN controller

System
512 MB DRAM, 128 MB flash, 710 MHz quad-core

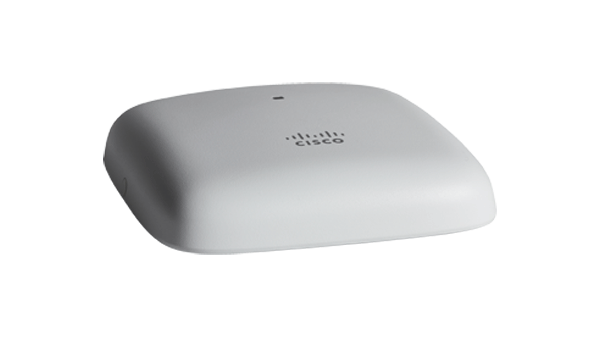

Cisco Aironet 1815m

Cisco Aironet 1815m Wireless Access Point

  • 2x2 MU-MIMO, 2 spatial streams

  • 3 dB more transmit power than the 1815i​

  • Integrated Bluetooth low energy 4.1 radio

  • Flexible deployment through Mobility Express

Authentication and security
Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)
802.1X, RADIUS authentication, authorization, and accounting (AAA)
802.11r, 802.11i

Software
Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later
Cisco Mobility Express

802.11ac
2 x 2 single-user/multiuser MIMO with two spatial streams
Maximal ratio combining (MRC)
20-, 40-, and 80-MHz channels
PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic shift diversity (CSD) support

Ethernet ports
Authentication with 802.1X or MAC filtered
Dynamic VLAN or per port
Traffic locally switched or tunneled back to wireless LAN controller

Bluetooth (future availability)
Integrated Bluetooth 4.1 (including BLE) radio
Maximum transmit power: 4 dBm
Antenna gain: 2 dBi

Interfaces
1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
Management console port (RJ-45)

System
1-GB DRAM, 256-MB flash memory, 710-MHz quad-core

Maximum clients
Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point


Cisco Aironet 1830 Series Access Points

Supports the latest Wi-Fi standard, 802.11ac Wave 2,
The 1830 Series is perfect for small and medium-sized networks.



Cisco Aironet 1830i

Cisco Aironet 1830i Wireless Access Point

  • 3x3 MU-MIMO and 2 spatial streams

  • Transmit beamforming

  • Mobility Express for flexible deployment

long dotted gray line.jpg

Software
Cisco Unified Wireless Network Software Release with AireOS wireless controllers: 8.1.121.0 or later for the Cisco Aironet 1830 Series Access Points

Deployment modes
Centralized, standalone, sniffer, Cisco FlexConnect, monitor, OfficeExtend, mesh

Supported wireless LAN controllers

Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco 5520 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 8540 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3650 and 3850 Series Switches with integrated controller

Cisco Mobility Express

Interfaces
1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
Management console port (RJ-45)
USB 2.0 (enabled via future software)

802.11n version 2.0 (and related) capabilities
3x3 MIMO with two spatial streams
Maximal Ratio Combining (MRC)
20- and 40-MHz channels
PHY data rates up to 300 Mbps (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support

802.11ac Wave 1 and 2 capabilities
3x3 MIMO with two spatial streams, single-user or multiuser MIMO
MRC
802.11ac beamforming (transmit beamforming)
20-, 40-, and 80-MHz channels
PHY data rates up to 867 Mbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support

System
1 GB DRAM, 256 MB flash, 710 MHz quad core

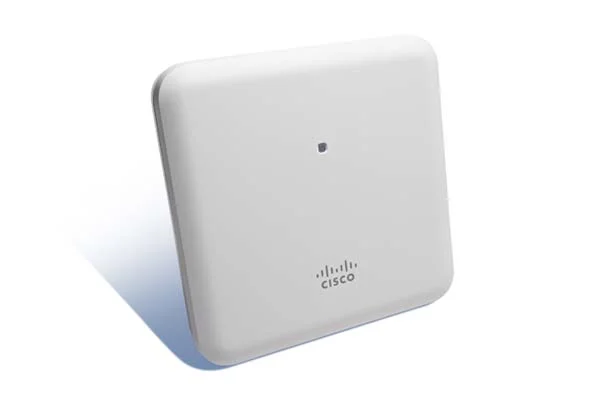

Cisco Aironet 1850 Series Access Points

Designed for small and medium-sized networks, the 1850 Series delivers the performance you
need for the ongoing proliferation of Wave 2 as well as support for older Wi-Fi devices.

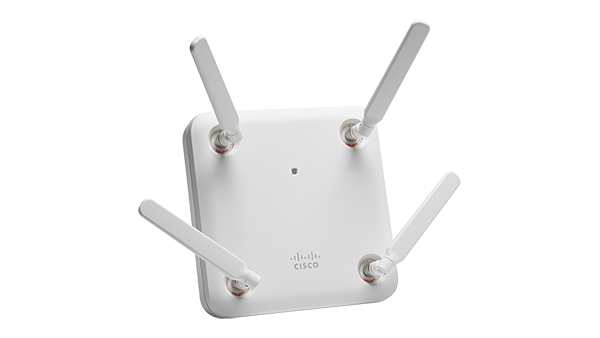

Cisco Aironet 1850e
Access Point

Cisco Aironet 1850e Access Point

  • 4x4 MU-MIMO, 4 spatial streams

  • Transmit beamforming

  • Mobility Express for flexible deployment

  • External antenna

Cisco Aironet 1850i
Access Point

Cisco Aironet 1850i Access Point

  • 4x4 MU-MIMO, 4 spatial streams

  • Transmit beamforming

  • Mobility Express for flexible deployment

  • Internal antenna

long dotted gray line.jpg

Software
Cisco Unified Wireless Network Software Release with AireOS wireless controllers: 8.2.100.0 or later for the Cisco Aironet 1850 Series Access Points

Deployment modes

Centralized local, Standalone, Sniffer, Cisco FlexConnect™, Monitor, OfficeExtend, Mesh

Supported wireless LAN controllers

Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 5760 Series Wireless Controllers, Cisco Catalyst 3650/3850 Series switch with integrated controller
Cisco Mobility Express

Interfaces
1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation)
Management console port (RJ-45)
USB 2.0 (enabled via future software)

802.11n version 2.0 (and related) capabilities
4x4 MIMO with four spatial streams
Maximal Ratio Combining (MRC)
20- and 40-MHz channels
PHY data rates up to 600 Mbps (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support

802.11ac Wave 1 and 2 capabilities
4x4 MIMO with four spatial streams, single-user MIMO
4x4 MIMO with three spatial streams, multiuser MIMO
MRC
802.11ac beamforming (transmit beamforming)
20-, 40-, and 80-MHz channels
PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support
Rogue device detection

System memory
1 GB DRAM, 256 MB flash


Cisco Aironet 2800 Series Access Points

These best-in-class access points support the cutting-edge 802.11ac Wave 2 standard to give your wireless network the capability to meet your ever-changing business goals.

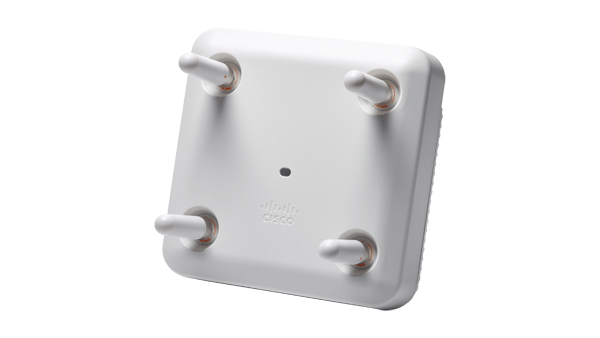

Cisco Aironet 2800e
Access Point

Cisco Aironet 2800e Access Point

  • 802.11ac Wave 2 Support

  • MU-MIMO 4x4, 3 spatial streams

  • Flexible Radio Assignment

  • External antenna

cisco Aironet 2800i
Access Point

Cisco Aironet 2800i Wireless Access Piont

  • 802.11ac Wave 2 Support

  • MU-MIMO 4x4, 3 spatial streams

  • Flexible Radio Assignment

  • Internal antenna

long dotted gray line.jpg

Software
Cisco Unified Wireless Network Software Release 8.2.111.0
or later
Cisco IOS® XE Software Release 16.3

Supported wireless LAN controllers

Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller
Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches
Cisco Mobility Express

802.11n version 2.0 (and related) capabilities
4x4 MIMO with three spatial streams
Maximal Ratio Combining (MRC)
802.11n and 802.11a/g beamforming
20- and 40-MHz channels
PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support

Interfaces
2802I/E
2x100/1000BASE-T autosensing (RJ-45)
Management console port (RJ-45)
USB 2.0 (enabled via future software)

802.11ac Wave 1 capabilities
4x4 MIMO with three spatial streams
MRC
802.11ac beamforming
20-, 40-, and 80-MHz channels
PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support

802.11ac Wave 2 capabilities
4x4 MU-MIMO with three spatial streams
MRC
802.11ac beamforming
20-, 40-, 80, 160-MHz channels
PHY data rates up to 5.2 Gbps
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support

Integrated antenna
Flexible radio (either 2.4 GHz or 5 GHz)
2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth
5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°
Dedicated 5-GHz radio
5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth

System memory
1024 MB DRAM, 256 MB flash


Cisco Aironet 3800 Series Access Points

Stay flexible and keep up with bandwidth demands from the growing number of wireless devices and applications.

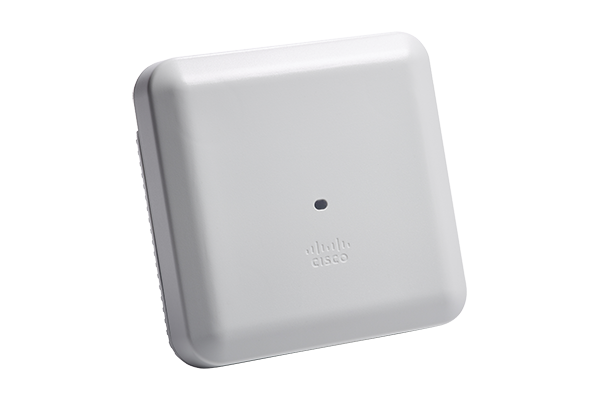

Aironet 3800i
Access Point

Cisco Aironet 3800i Wireless Access Point


  • 802.11ac Wave 2 support

  • MU-MIMO 4x4, 3 spatial streams

  • Flexible radio assignment

  • Internal antenna

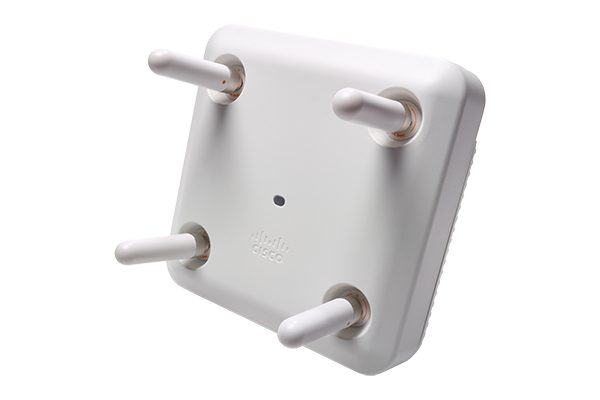

Aironet 3800e
Access Point

Cisco Aironet 3800e Wireless Access Point


  • 802.11ac Wave 2 support

  • MU-MIMO 4x4, 3 spatial streams

  • Flexible radio assignment

  • External antenna

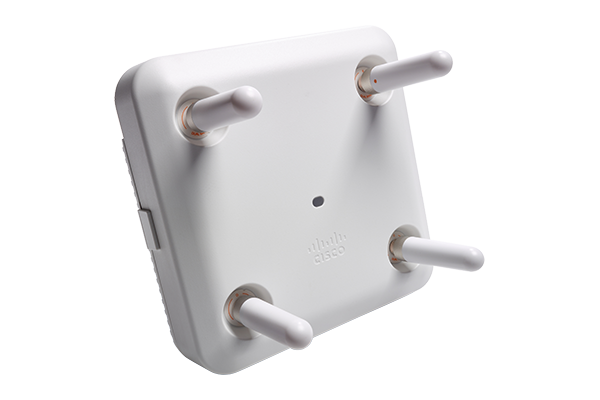

Aironet 3800p
Access Point

Cisco Aironet 3800p Wireless Access Point


  • 802.11ac Wave 2 support

  • MU-MIMO 4x4, 3 spatial streams

  • Flexible radio assignment

  • Ideal for stadiums, arenas, convention centers

Software and supported wireless LAN controllers
Cisco Unified Wireless Network Software Release 8.2.111.0
or later
Cisco IOS® XE Software Release 16.3
Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller
Cisco Catalyst 3850 Series and 3650 Series Switches
Cisco Mobility Express

802.11n version 2.0 (and related) capabilities
4x4 MIMO with three spatial streams
Maximal Ratio Combining (MRC)
802.11n and 802.11a/g beamforming
20- and 40-MHz channels
PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support

802.11ac Wave 1 capabilities
4x4 MIMO with three spatial streams
MRC
802.11ac beamforming
20-, 40-, and 80-MHz channels
PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support

802.11ac Wave 2 capabilities
4x4 MU-MIMO with three spatial streams
MRC
802.11ac beamforming
20-, 40-, 80, 160-MHz channels
PHY data rates up to 5.2 Gbps
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support

Wi-Fi Alliance Certified
Wi-Fi Certified a, b, g, n, ac
Wi-Fi Vantage
WMM
Passpoint

Integrated antenna
Flexible radio (either 2.4 GHz or 5 GHz):
2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth
5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°
Dedicated 5-GHz radio:
5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth

Interfaces
2 Ethernet ports
100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
CAT 5e cabling
Higher-quality 10GBASE-T (CAT 6/6a) cabling
100/1000BASE-T autosensing (RJ-45 - AUX port)
Management console port (RJ-45)

System memory
1024 MB DRAM, 256 MB flash


Cisco Aironet 4800 Access Points

Highly versatile and delivers the most functionality of any access point in the industry.



Cisco Aironet 4800
Access Point

Cisco Aironet 4800 Wireless Access Point

  • Theoretical connection rate of 2.6 Gbps per radio

  • 802.11ac Wave 2 compliant

  • Dual radios: 2.4 and 5 GHz or dual 5 GHz with flexible radio assignment to optimize performance based on dynamic network conditions

  • 4x4 MU-MIMO radio designs with three spatial streams

  • Supports channels up to 160 MHz wide with Dynamic Bandwidth Selection

Software and supported wireless LAN controllers
Cisco Unified Wireless Network Software Release 8.7 or later
Cisco 3500 Series Wireless Controllers, 5520 Series Wireless Controllers, 8540 Series Wireless Controllers, and Virtual Wireless Controller
Cisco IOS® XE Software Release 16.9
Cisco Catalyst® 3850 Series and 3650 Series Switches

802.11n version 2.0 (and related) capabilities
4x4 MIMO with three spatial streams
Maximal Ratio Combining (MRC)
802.11n and 802.11a/g beamforming
20- and 40-MHz channels
PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support

802.11ac Wave 1 capabilities
4x4 MIMO with three spatial streams
MRC
802.11ac beamforming
20-, 40-, and 80-MHz channels
PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support

Wi-Fi Alliance certifications
Wi-Fi Certified a, b, g, n, ac
Wi-Fi Vantage
Wi-Fi Multimedia (WMM)
Passpoint

System memory
1024 MB DRAM, 256 MB flash

802.11ac Wave 2 capabilities
4x4 MU-MIMO with three spatial streams
MRC
802.11ac beamforming
20-, 40-, 80, 160-MHz channels
PHY data rates up to 5.2 Gbps
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support

Integrated antenna
Flexible radio (either 2.4 GHz or 5 GHz):
2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth
5 GHz, gain 5 dBi, internal directional antenna, elevation plane beam width 90°
Dedicated 5-GHz radio:
5 GHz, gain 3.5 dBi, internal antenna, omnidirectional in azimuth
Third dedicated radio
2.4 GHz and 5 GHz capable
Hyperlocation antenna array
BLE radio
2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth

Interfaces
2 Ethernet ports
100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
Category 5e cabling
Higher-quality 10GBASE-T (Category 6/6a) cabling
100/1000BASE-T autosensing (RJ-45 AUX port)
Management console port (RJ-45)


Cisco Small Business 100 Series
Wireless Access Points


Connect your mobile devices with faster speed.
Increase productively and run next-generation applications without any lags.

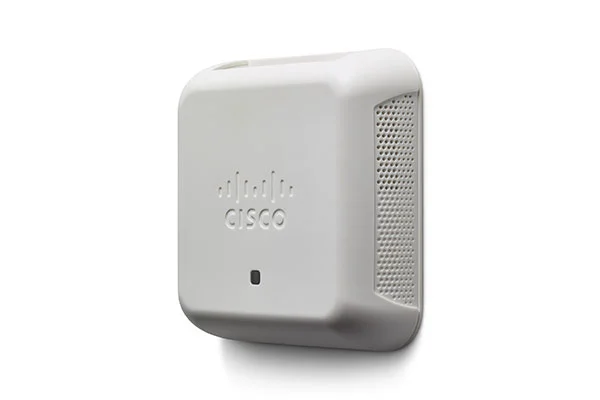

Cisco WAP150 Wireless-AC/N Dual Radio Access Point with PoE

Cisco WAP150 Wireless-AC/N Dual Radio Access Point with PoE

  • Wireless AC

  • 867 Mbps 11ac + 300Mbps 11n

  • 2 x 2:2 for 2.4 Ghz and 5 GHz

  • Maximum Associated Clients: 64 per radio

  • Access Points per Cluster: 4

  • Antenna: 4 x internal PIFA

  • 1 Ethernet 10BASE-T/100BASE-TX/1000BASE-T; RJ-45

  • 802.3af/at

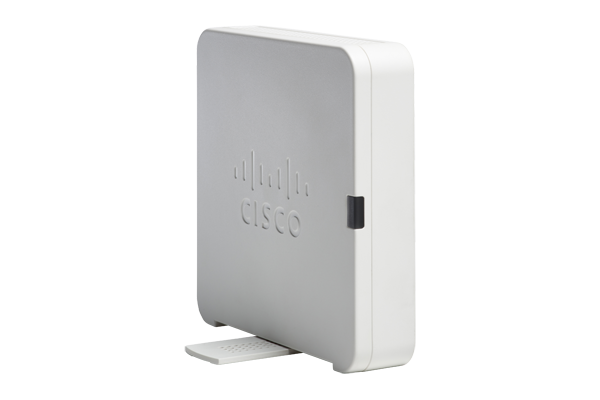

Cisco WAP125 Wireless-AC Dual Band Desktop Access Point with PoE

Cisco WAP125 Wireless-AC Dual Band Desktop Access Point with PoE

  • Wireless AC

  • Up to 867 Mbps

  • 2 x 2:2 for 2.4 Ghz and 5 GHz or 1x1 on both 2.4 Ghz and 5 GHz

  • Maximum active WLAN clients: 16

  • 802.11r (when supported by driver)

  • Antenna: 2 x internal PIFA

  • 1 Ethernet 10BASE-T/100BASE-TX/1000BASE-T; RJ-45

  • 802.3af/at

Cisco WAP121 Wireless-N Access Point with Single Point Setup


Cisco WAP121 Wireless-N Access Point


  • Wireless N

  • Up to 300 Mbps

  • 2 x 2:2

  • Maximum active WLAN clients: 16

  • Access Points per Cluster: 4

  • 802.11r (when supported by driver)

  • Antenna: 2 x internal PIFA

  • Ethernet 10BASE-T/100BASE-TX/1000BASE-T; RJ-45

  • 802.3af/at

  • (MTBF): 68,248 hours


Cisco Small Business 300 Series



Your business can deliver wired and wireless Gigabit speed and guest access services that are affordable, highly secure, and reliable-without a hardware controller. The easy-to-deploy 300 Series wireless access points offer 802.11n and 802.11ac wireless connectivity for indoor environments.




Cisco WAP361 Wireless-AC/N Dual Radio Wall Plate Access Point with PoE

Cisco Small Business 300 Series Wireless AP.jpg

  • 802.11ac Wave 1

  • Dual radio, 2.4 GHz and 5 GHz

  • 867 Mbps 11ac + 300 Mbps 11n

  • Max associated clients: 128 per radio

  • 8 WAP361 access points

  • 5xGE Ethernet ports

long dotted gray line.jpg

Cisco WAP371 Wireless-AC/N Access Point with Single Point Setup

Cisco WAP371 Wireless-AC/N Access Point with Single Point Setup

  • 10/100/1000 BASE-T autosensing (RJ45)

  • 802.3at/af Ethernet switch, Cisco SB-PWR-INJ2-xx power injector or local power supply

  • 1300 + 300 Mbps

  • Concurrent band 2.4 GHz and 5 GHz

  • 6 x internal PIFA antenna

  • 802.11ac, 3x3 multiple-input multiple-output (MIMO)
    with 3 spatial streams at 5 GHz
    802.11n 2x2 multiple-input multiple-output (MIMO)
    with 2 spatial streams at 2.4 GHz

long dotted gray line.jpg

Connectivity technology
Wireless AC

Data link protocol
IEEE 802.11a/b/g/n, IEEE 802.11ac

DFS support
Yes

Remote management protocol
SNMPv3, HTTP, HTTPS

Network and transport protocol
DHCP, Bonjour

Maximum active WLAN clients
32 per radio

Number of access points supported per cluster
8

Features
DHCP support, load balancing, VLAN support, syslog support, email alert, IPv6, Wireless Distribution System (WDS), firmware upgradable, wall mountable, Spanning Tree Protocol (STP), Wi-Fi Multimedia (WMM), access control list (ACL), quality of service (QoS), RADIUS, multiple SSID, wireless bridge mode, Wireless Scheduler, IPv4, rogue access point detection, captive portal, band steering, Single Point Setup


Cisco Small Business 500 Series
Wireless Access Points



Business-class, high-capacity wireless LAN and guest access services that are highly secure and reliable, without a controller. Easy to deploy and use, these access points offer 802.11ac and 802.11n wireless connectivity for indoor and outdoor environments.




Cisco WAP581 Wireless-AC Dual Radio Wave 2 with 2.5GbE LAN

Cisco WAP581 Wireless-AC Dual Radio Wave 2

  • Provides cost-effective 802.11ac Wave 2 connectivity with speeds up to 2.8 Gbps

  • Supports 4 x 4 multi-user multiple-input, multiple-output (MU-MIMO) technology on 5.0-GHz radio and 3 x 3 MIMO technology on 2.4-GHz radio for maximum performance

  • Supports Dual Gigabit Ethernet (2.5G and 1G) LAN with Energy Efficient Ethernet and link aggregation

  • Supports both Power over Ethernet (PoE) and AC power with external power adapter

Standards: IEEE 802.11ac, 802.11a, 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (spanning tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), and IPv6 (RFC 2460)

Cabling type: Category 5e or better

Antennas: Internal antennas optimized for installation on a wall or ceiling

Operating system: Linux Software

Ports: 2 GE ports - one 2.5G and second one 10/100/1000 Ethernet, with support for 802.3at at PoE; support is only for port 1

Buttons: Reset button

Lock slot: Slot for Kensington lock

LEDs: One multifunction LED

VLAN support: Yes

Number of VLANs: 1 management VLAN plus 32 VLANs for SSIDs

802.1X supplicant: Yes

Service Set Identifier (SSID)-to-VLAN mapping: Yes

Auto-channel selection: Yes

Spanning tree: Yes

Load balancing: Yes

IPv6: Yes
IPv6 host support
IPv6 RADIUS, syslog, and Network Time Protocol (NTP)

Layer 2: 802.1Q-based VLANS, 32 active VLANS plus 1 management VLAN

W-Fi Protected Access (WPA) and WPA2: Yes, including enterprise authentication

Access control: Yes, management access control list (ACL) plus MAC ACL

Secure management: Secure HTTP (HTTPS)

SSID broadcast: Yes

Rogue access point detection: Yes

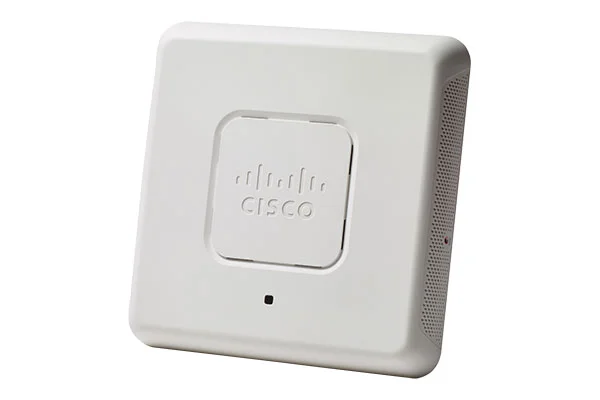

Cisco WAP571 Wireless-AC/N Premium Dual Radio Access Point with PoE

Cisco WAP571 Wireless-AC/N Premium Dual Radio Access Point with PoE

  • 802.11ac Wave 1

  • Dual radio, 2.4 GHz and 5 GHz

  • 1300 Mbps 11ac + 600 Mbps 11n

  • Maximum associated clients: 256 per radio

  • 16 WAP571E access points

  • 2xGE Ethernet port with link aggregation (LAG) support

long dotted gray line.jpg

Standards: IEEE 802.11ac, 802.11a, 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)

Ports: 2 LAN Gigabit Ethernet autosensing

Cabling type: Category 5e or better

Antennas: Internal antennas optimized for installation on a wall or ceiling

LED indicators: One LED

Operating system: Linux

Ports: 2- 10/100/1000 Ethernet, with support for 802.3at at PoE support is only for 1 port and not 2 ports

Buttons: Reset button

Lock slot: Slot for Kensington lock

LEDs: One multi-function LED

VLAN support: Yes

Number of VLANs: 1 management VLAN plus 32 VLANs
for SSIDs

802.1X supplicant: Yes

SSID-to-VLAN mapping: Yes

Auto-channel selection: Yes

Spanning tree: Yes

Load balancing: Yes

IPv6: Yes
IPv6 host support
IPv6 RADIUS, syslog, Network Time Protocol (NTP)

Layer 2: 802.1Q-based VLANS, 32 active VLANS plus 1 management VLAN

WPA, WPA2: Yes, including Enterprise authentication

Access control: Yes, management access control list (ACL) plus MAC ACL

Secure management: HTTPS

SSID broadcast: Yes

Rogue access point detection: Yes

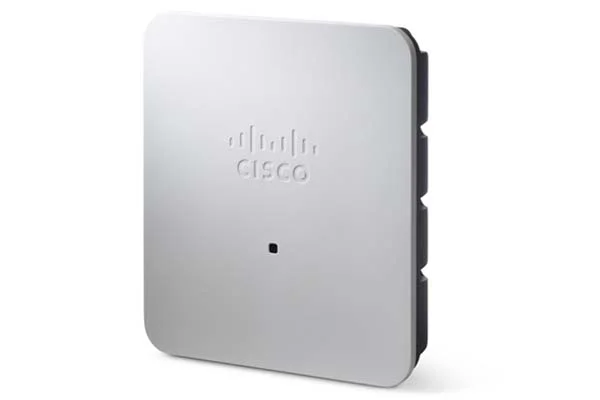

Cisco WAP571E Wireless-AC/N Premium Dual Radio Outdoor Access Point

Cisco WAP571E Wireless-AC/N Premium Dual Radio Outdoor Access Point
  • 802.11ac Wave 1

  • Dual radio, 2.4 GHz and 5 GHz

  • 1300 Mbps 11ac + 600 Mbps 11n

  • Maximum associated clients: 256 per radio

  • 16 WAP571E access points

  • Outdoor rating: IP66

  • Interface: 2xGE Ethernet port with link aggregation (LAG) support

long dotted gray line.jpg

Standards: IEEE 802.11ac, 802.11a, 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)

Ports: 2 LAN Gigabit Ethernet autosensing

Cabling type: Category 5e or better

Antennas: Internal antennas optimized for installation
on a wall

LED indicators: One LED

Operating system: Linux

Ports: 2- 10/100/1000 Ethernet, with support for 802.3at at PoE support is only for 1 port and not 2 ports

Buttons: Reset button

LEDs: One multi-function LED

VLAN support: Yes

Number of VLANs: 1 management VLAN plus 32 VLANs for SSIDs

802.1X supplicant: Yes

SSID-to-VLAN mapping: Yes

Auto-channel selection: Yes

Spanning tree: Yes

Load balancing: Yes

IPv6: Yes
IPv6 host support
IPv6 RADIUS, syslog, Network Time Protocol (NTP)

Layer 2: 802.1Q-based VLANS, 32 active VLANS plus 1 management VLAN

WPA, WPA2: Yes, including Enterprise authentication

Access control: Yes, management access control list (ACL) plus MAC ACL

Secure management: HTTPS

SSID broadcast: Yes

Rogue access point detection: Yes

Outdoor and Industrial Access Points

Deliver access to people, applications, and network resources outside the office



Cisco Aironet 1540 Series

Rugged and sleek, the Cisco Aironet 1540 Access Points provide customers with the latest 802.11ac Wave 2
functionality along with easy installation.

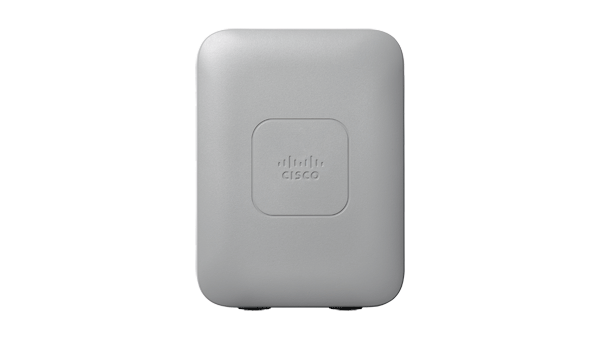

Aironet 1542I

Cisco Aironet 1542I

  • Semi-omnidirectional antenna

  • 802.11ac Wave 2 support

  • MU-MIMO 2x2, 2 spatial streams

  • Flexible deployment with Mobility Express,
    as traditional APs, and in mesh networks

long dotted gray line.jpg

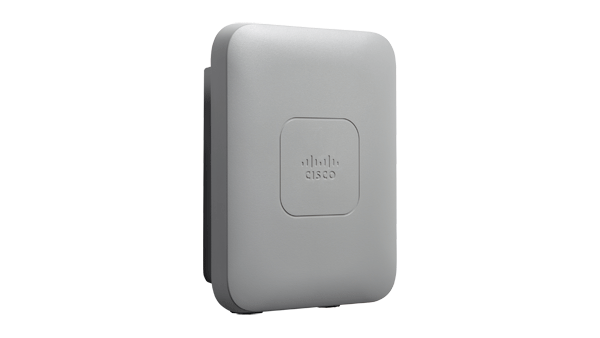

Aironet 1542D

Aironet 1542D

  • Directional antenna

  • 802.11ac Wave 2 support

  • MU-MIMO 2x2, 2 spatial streams

  • Flexible deployment with Mobility Express,
    as traditional APs, and in mesh networks

long dotted gray line.jpg

Interfaces
WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in
Management console port (RJ-45)
Multicolor LED/Reset button

Uplink options
Ethernet and wireless mesh

Environmental ratings
IEC 60529 IP67
Icing protection    NEMA 250-2008
Corrosion           NEMA 250-2008 (600 hours)
Solar radiation      EN 60068-2-5 (1200 W/m2)
Vibration              MIL-STD-810

Powering options
802.3af, 802.3at
Cisco power injectors:

  • AIR-PWRINJ-60RGD1= (outdoor rated, 60W, with NEMA 5-15 AC plug)

  • AIR-PWRINJ-60RGD2= (outdoor rated, 60W, unterminated AC cable)

  • AIR-PWRINJ5= (indoor, 802.3af)

  • AIR-PWRINJ6= (indoor, 802.3at)


Cisco Aironet 1560 Series

These outdoor access points extend the quality and robustness of the Wi-Fi that’s inside your office, outside.

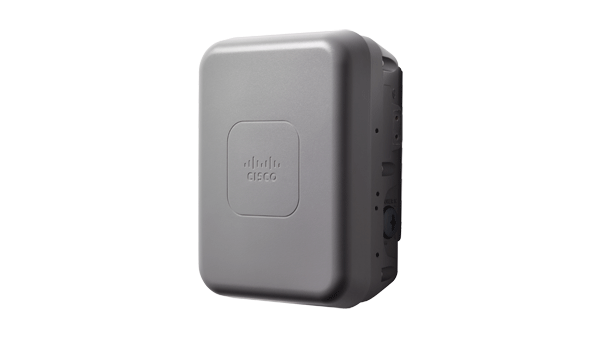

Aironet 1562I

Aironet 1562I

  • 802.11ac Wave 2 support

  • 3x3 MU-MIMO, 3 spatial streams

  • Internal antenna

  • 1300 Mbps

  • Maximum clients: 400

long dotted gray line.jpg

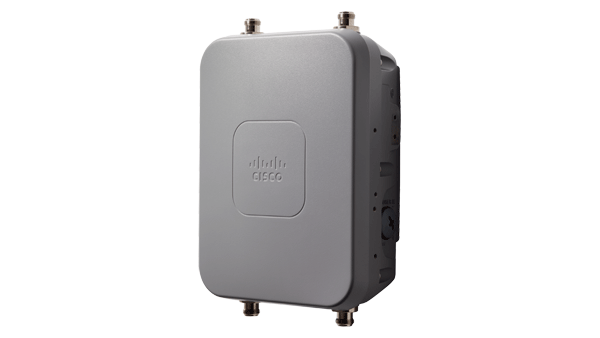

Aironet 1562E

Aironet 1562E

  • 802.11ac Wave 2 support

  • 2x2 MU-MIMO, 2 spatial streams

  • Flexible antenna ports

  • External antenna

  • 867 Mbps

  • Maximum clients: 400

long dotted gray line.jpg

Aironet 1562D

Aironet 1562D

  • 802.11ac Wave 2 support

  • 2x2 MU-MIMO, 2 spatial streams

  • Directional antenna

  • 867 Mbps

  • Maximum clients: 400

long dotted gray line.jpg

802.11ac Wave 1 and 2 capabilities
1562I: 3 x 3 MIMO with three spatial streams
1562E/D 2 x 2 MIMO with two spatial streams
Multi- and single-user MIMO
Maximal ratio combining (MRC)
802.11ac beamforming (transmit beamforming)
20-, 40-, and 80-MHz channels
PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
802.11 dynamic frequency selection (DFS)
Cyclic-shift-diversity (CSD) support

802.11n (and related) capabilities
1562I: 3 x 3 MIMO with three spatial streams
1562E/D: 2 x 2 MIMO with two spatial streams
MRC
20- and 40-MHz channels
PHY data rates up to 450 Mbps
Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
802.11 DFS
CSD support

Interfaces
WAN port 10/100/1000BASE-TEthernet,autosensing
(RJ-45), PoE in
SFP port (fiber or electrical)
Management console port (RJ-45)
Multicolor LED
DC power input
Reset button

Powering options
AC (with AIR-PWRADPT-RGD1=, AC/DC outdoor power adapter)
44–57 VDC input
Universal Power of Ethernet (UPoE), 802.3at
Cisco power injectors: AIR-PWRINJ-60RGD1= (outdoor rated, 60W, with NEMA 5-15 AC plug)
AIR-PWRINJ-60RGD2=(outdoor rated, 60W,
unterminated AC cable)
AIR-PWRINJ6= (indoor, 802.3at)

Note: If 802.3at Power over Ethernet (PoE) is the source of power, the 1562I radios will shift from 3 x 3 to 2 x 2.

Uplink options
Ethernet, SFP, and wireless mesh (future availability)

Environmental ratings
IEC 60529 IP67
NEMA Type 4X
Icing protection   NEMA 250-2008
Corrosion          NEMA 250-2008 (600 hours)
Solar radiation     EN 60068-2-5 (1200 W/ m2)
Vibration            MIL-STD-810


Cisco Aironet 1570 Series

The Cisco Aironet 1570 Series is currently the industry's highest-performing outdoor access point. It is the only one to date that supports 802.11ac Wi-Fi with 4x4 MIMO true beamforming smart antenna technology with three spatial streams.



Aironet 1572EAC

Aironet 1572EAC

  • Dual-band or single-band, software-configurable

  • 802.11a/b/g/n/acW1

  • 1300 Mbps

  • 4x4:3

  • Maximum clients: 400

  • Fiber SPF optics: Yes

  • LAN port/PoE out (802.3af): Yes

  • Power options: AC, DC, PoE

long dotted line.png

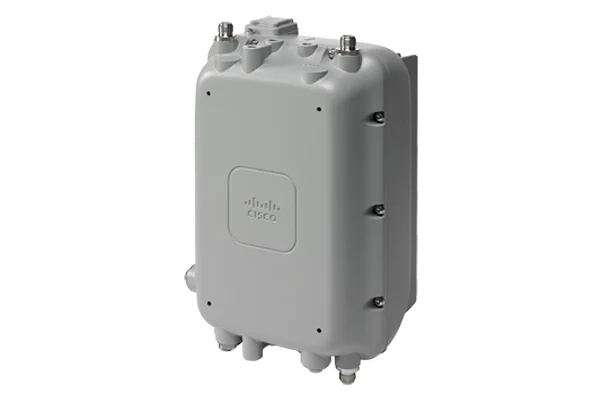

Aironet 1572EC/IC

Aironet 1572EC/IC

  • IC: Internal EC: External, software-configurable

  • 802.11a/b/g/n/acW1

  • 1300 Mbps

  • 4x4:3

  • Maximum clients: 400

  • Fiber SPF optics: Yes

  • Cable Modem

  • Power options: 40-90 VAC, power over cable, DC

long dotted line.png

802.11ac Wave 1 and 2 capabilities
4x4 MIMO with three spatial streams (3SS)
Maximum Ratio Combining (MRC)
802.11ac Beamforming
20-, 40-, and 80-MHz channels
PHY data rates up to 1.3 Gbps (80 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support

802.11n Versions 2.0 capabilities
4x4 MIMO with three spatial streams (3SS)
Maximal ratio combining (MRC)
802.11n and 802.11a/g Beamforming
20- and 40-MHz channels
PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support

Interfaces
WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45)
LAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45)
Fiber SFP
Cable modem: NA-DOCSIS3.0/Euro-DOCSIS3.0/Japan-DOCSIS3.0
(8x4, 16x8, or 24x8)
Management console port (RJ-45)
Four multicolor LEDs
Reset button

Powering options 1572EAC
AC: 100-277 VAC, 50/60 Hz
DC: 10 to 16 VDC
PoE-Input: UPOE compliant PSE; Cisco AIR-PWRINJ1500-2= PoE-out: PoE+ (802.3at)
Powering options 1572IC/1572EC
PoC: 40-90 VAC, 50/60 Hz, quasi-square wave, Power over Cable (PoC)
DC: 10 to 16 VDC PoE-out: PoE+ (802.3at), 1572EC only

Uplink options
1572EAC: Ethernet, Fiber SFP, Wireless Mesh
1572IC: Ethernet, Fiber SFP, Wireless Mesh, Cable Modem
1572EC: Ethernet, Fiber SFP, Wireless Mesh, Cable Modem

Environmental ratings
IP67
NEMA Type 4X

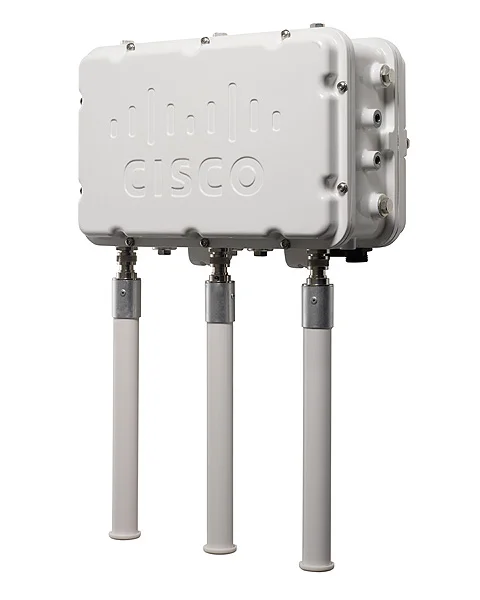

Cisco Aironet 1552H/S/WU Outdoor Access Point


Cisco Aironet 1552H Outdoor Access Point



Extend high-performance wireless connectivity to hazardous environments with our 1550 Wireless Access Points.

  • Dual-band external antenna

  • 802.11a/b/g/n

  • Data rate: 300 Mbps

  • 2x3:2

  • Maximum clients: 400

  • Fiber SPF optics: Yes

  • LAN port/PoE out (802.3af): Yes

  • Power options: AC, DC, PoE

802.11n Version 2.0 (and Related) Capabilities
2 x 3 multiple-input multiple-output (MIMO) with
two spatial streams
Legacy beamforming
20- and 40-MHz channels
PHY data rates up to 300 Mbps
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 dynamic frequency selection (DFS)
Cyclic shift diversity (CSD) support

Network Interface
10/100/1000BASE-T Ethernet, autosensing (RJ-45)
Fiber SFP (1000BASE-LX or 1000BASE-SX)

Environmental Ratings
IP67
NEMA Type 4X

Environmental
Operating temperature: -40 to 55°C (-40 to 131°F)
plus Solar Loading
Storage temperature: -50 to 85°C (-58 to 185°F)
Wind resistance: Up to 100 mph sustained winds,
Up to 165 mph wind gusts

Antenna Gain
External Dual-Band Omnidirectional Antennas:
AIR-ANT2547V-N=/AIR-ANT2547V-N-HZ= (4 dBi (2.4 GHz), 7 dBi (5 GHz))
External Dual-Band Directional Antennas
AIR-ANT2588P3M-N= (8 dBi (2.4 GHz), 8 dBi (5 GHz))

Powering Options
100-240 VAC, 50-60 Hz
12 VDC (not for hazardous environments)
PoE with power injector

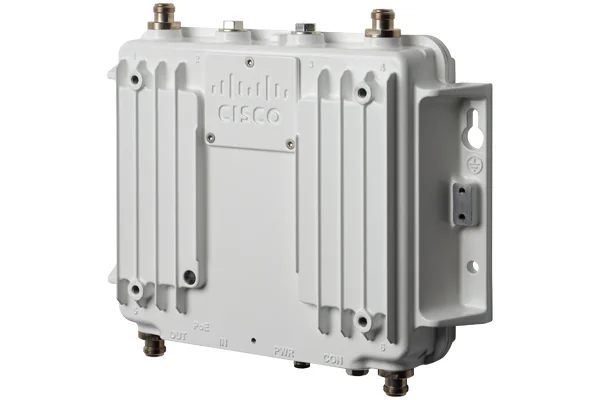

Cisco Industrial Wireless 3700 Series

Cisco Industrial Wireless 3700

  • Dual-band or single-band, software-configurable

  • 802.11a/b/g/n/acW1

  • 1300 Mbps

  • 4x4:3

  • Maximum clients: 400

  • LAN port/PoE out (802.3af): Yes

  • Power options: 24 VDC, PoE

802.11ac Wave 1 capabilities
4 x 4 MIMO with 3 spatial streams
Maximal-Ratio Combining (MRC)
802.11ac beamforming
20-, 40-, and 80-MHz channels
PHY data rates up to 1.3 Gbps (80 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support

802.11n version 2.0 (and related) capabilities
4 x 4 MIMO with 3 spatial streams
Maximal-Ratio Combining (MRC)
802.11n and 802.11a/g beamforming
20- and 40-MHz channels
PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support

System memory
512 MB DRAM
64 MB flash

Interfaces
10/100/1000BASE-T autosensing (M12 8P female connector with X-coding per IEC 61076-2), PoE In (802.3af), PoE+ In (802.3at)
10/100/1000BASE-T autosensing (M12 8P female connector with X-coding per IEC 61076-2), PoE Out (802.3af
Management console port (serial with RJ-45 connector)

Environmental
Nonoperating (storage) temperature: -40° to +185°F (-40° to +85°C)
Nonoperating (storage) altitude test: +25˚C, 15,000 ft.
Operating temperature: -40° to +158°F (-40° to +70°C) with solar load and still air
Extended operating temperature (DC powered): -58° to +167°F (-50° to +75°C) without solar loading, still air, and cold start limited to -40°C
Operating type test: +85°C for 16 hours
Operating humidity: 0% to 100% (condensing)
Operating altitude: 15,000 ft. (4,500 m)
Wind resistance: Up to 160 mph (257 km/h) sustained winds

Input power requirements
9.6 to 60 VDC (M12 4P male connector with
A-coding per IEC 61076-2)
PoE and PoE+ (M12 8P female connector with
X-coding per IEC 61076-2)

blue background.jpg

Prepare for an increasingly wireless future.

JSCM Group offers competitive Cisco pricing!
